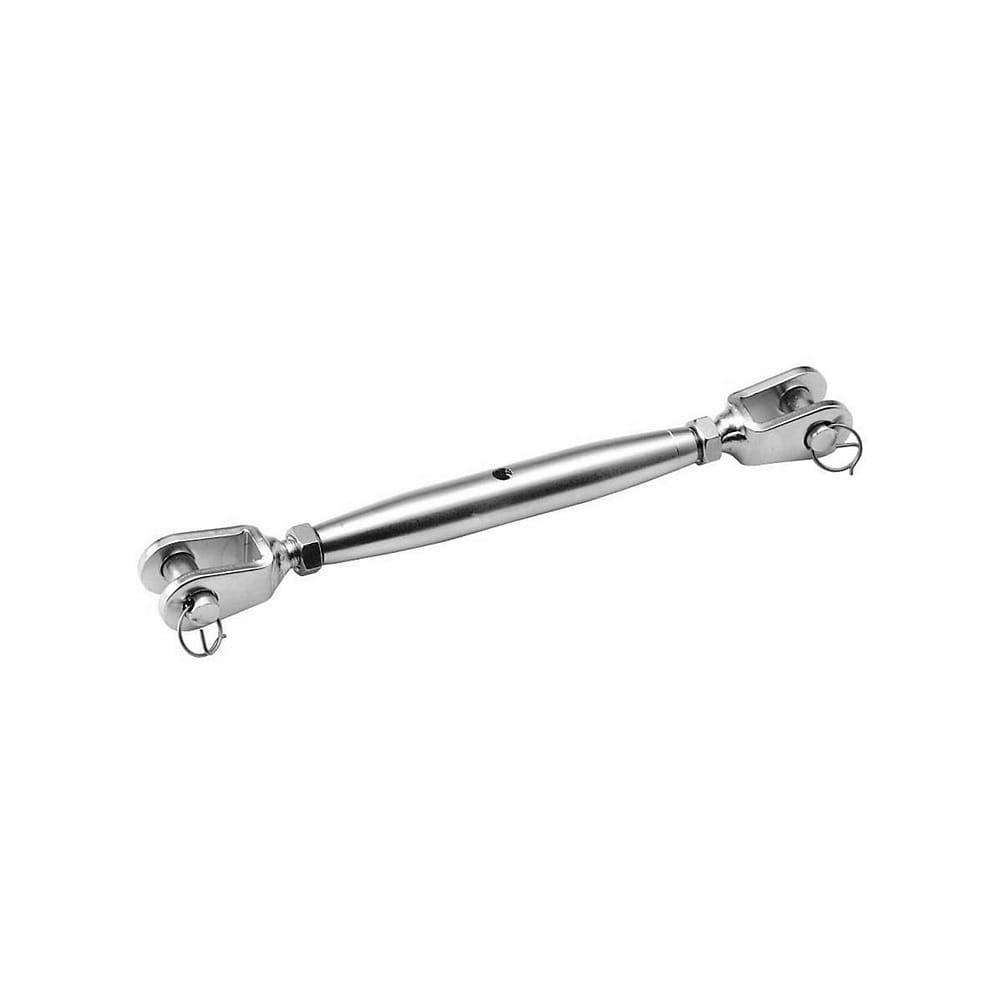

Tensor cerrado con dos horquillas — rosca métrica BlueWave
Los tensores cerrados con dos horquillas BlueWave ofrecen máxima resistencia y fiabilidad. Fabricados con rosca métrica, están disponibles en diferentes medidas para adaptarse a aplicaciones náuticas, arquitectónicas y proyectos profesionales.

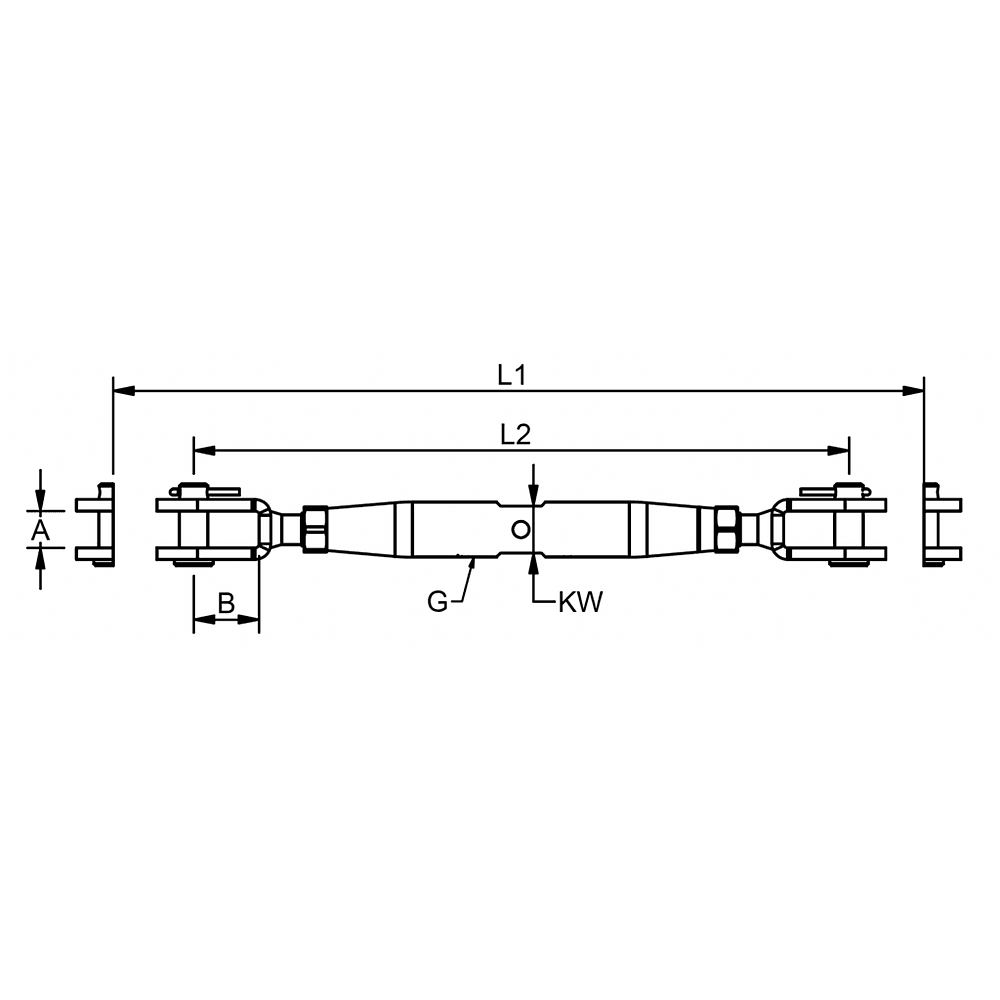

| ART. NO. | G (inch) | PIN (mm) | A (mm) | B (mm) | L1 (mm) | L2 (mm) | KW (mm) | BL / KG | KG / 100 | PACK |
|---|---|---|---|---|---|---|---|---|---|---|
| 120006A | 1/4″ | 6,35 | 9,5 | 13 | 232 | 140 | – | 1300 | 10 | 10 |
| 120008A | 5/16″ | 8 | 11 | 15 | 242 | 168 | – | 2200 | 15 | 10 |
| 120010A | 3/8″ | 9,5 | 12 | 19 | 274 | 190 | – | 3400 | 25,1 | 5 |
| 120011A | 7/16″ | 11 | 12 | 22 | 310 | 219 | – | 4600 | 35,2 | 5 |
| 120012A | 1/2″ | 12,7 | 14 | 25 | 350 | 244 | – | 6100 | 54,5 | 5 |
| 120016AX | 5/8″ | 16 | 18 | 33 | 447 | 314 | – | 9900 | 100 | 5 |
| 120020A | 3/4″ | 19 | 24 | 48 | 548 | 388 | – | 14400 | 197 | BULK |
| 120022A | 7/8″ | 22 | 30 | 57 | 652 | 471 | 41 | 19600 | 430 | BULK |
| 120025A | 1″ | 25,4 | 30 | 62 | 766 | 536 | 46 | 21400 | 643 | BULK |
